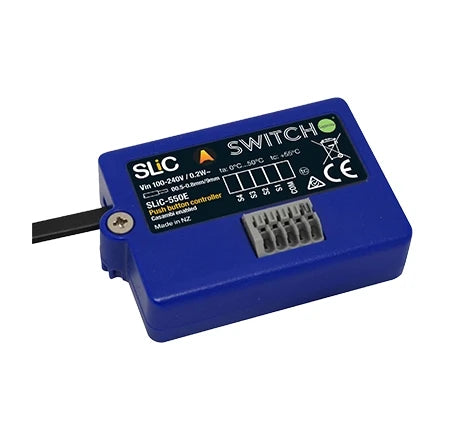

Switch Lighting SLiC 550E

The SLiC550E is the latest generation Casambi wireless push button interface for up to 4 push buttons.

It is easily configured by the Casambi App to control your lighting to provide on/off, Smooth Dimming, lighting Scene, Colour or Animation control. It can control all or just selected luminaries in the network.

• Compatible with SLiC500E Luminaire Controllers and any Classic or Evolution Casambi-enabled product

• Switches may be remotely mounted up to 20m from the SLiC550E unit

• Compatible with most momentary push button switches or any dry contact input

• Powered directly from the AC supply (<0.2W / 100-240V~ / 50/60Hz)

• Uses latest Nordic chip and custom designed antenna to give superior range performance

• Perfect for retrofit installations – no additional wiring required

• Designed and manufactured in New Zealand and fully compliant with the latest AS/NZS/EN standards.

The SLiC550E push-button controller is installed behind the wall switch plate.

Dimensions:

61mm x 42mm x 21mm

Technical Data Sheet
