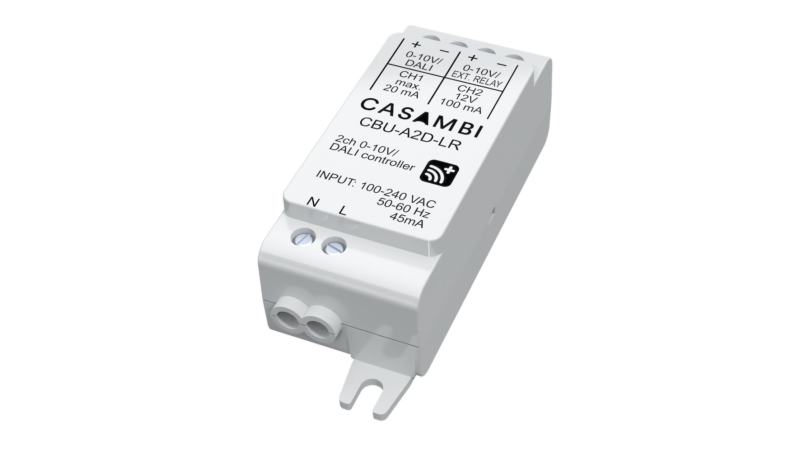

Casambi CBU A2D

CBU-A2D-LR is a Bluetooth-controllable, Long-range Casambi-enabled 0-10V/DALI controller. The product offers flexible configuration options, including dual-channel 0–10V analog control or single-channel DALI digital control. CBU-A2D-LR has a universal 100-240 VAC input voltage range.

CBU-A2D-LR can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can be configured in single-channel DALI mode, enabling seamless integration with DALI-compatible LED drivers or sensors to support presence detection and ambient light sensing capabilities.

CBU-A2D-LR can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.

Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 250 units form automatically an intelligent mesh network.

With Standalone DALI output, CBU-A2D-LR acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so-called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components at their minimum.
